Dimension (W x D x H): |
420(W) x 805(D) x 1620(H)mm |
Weight: | 90 kg |
Main voltage: | 230V, 50/60Hz |
Laser type: | Q-Swiched Nd:YAG / Micro pulse mode |
Wavelength: | 1064nm /532nm |

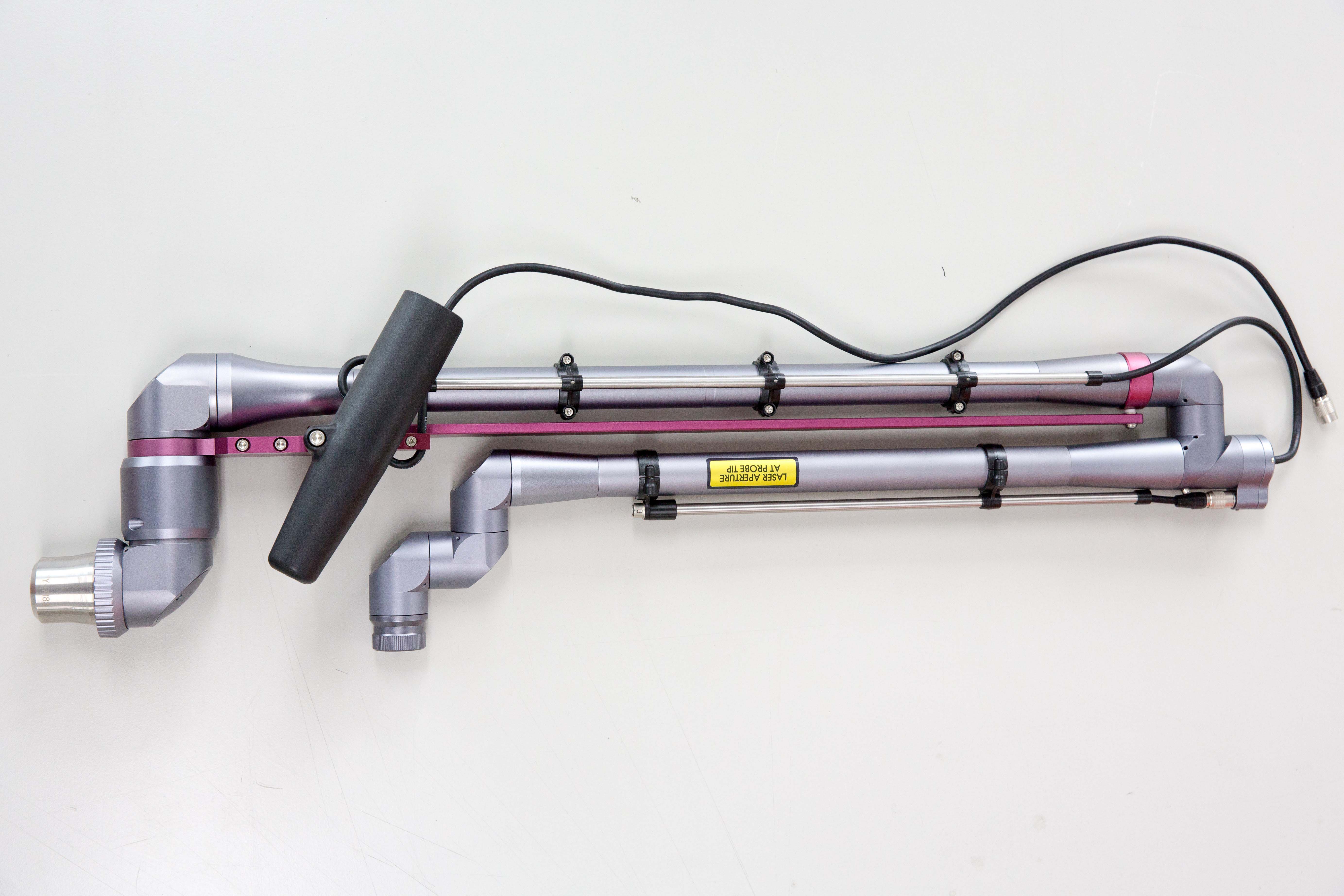

Beam delivery system: | Articulated arm |
Aiming beam: | 650nm, 1mW |
Beam mode quality: | Top hat mode |
Energy: | 1064nm:50~2700mJ 532nm:50~1200mJ 1064FR:500~2000mJ |
Pulse width: | 650nm, 1mW |
Frequency: | Single/1064FR:1~20Hz, D:1~10Hz, T:1~5Hz |
Laser cooling: | Water cooling Heat exchanger |

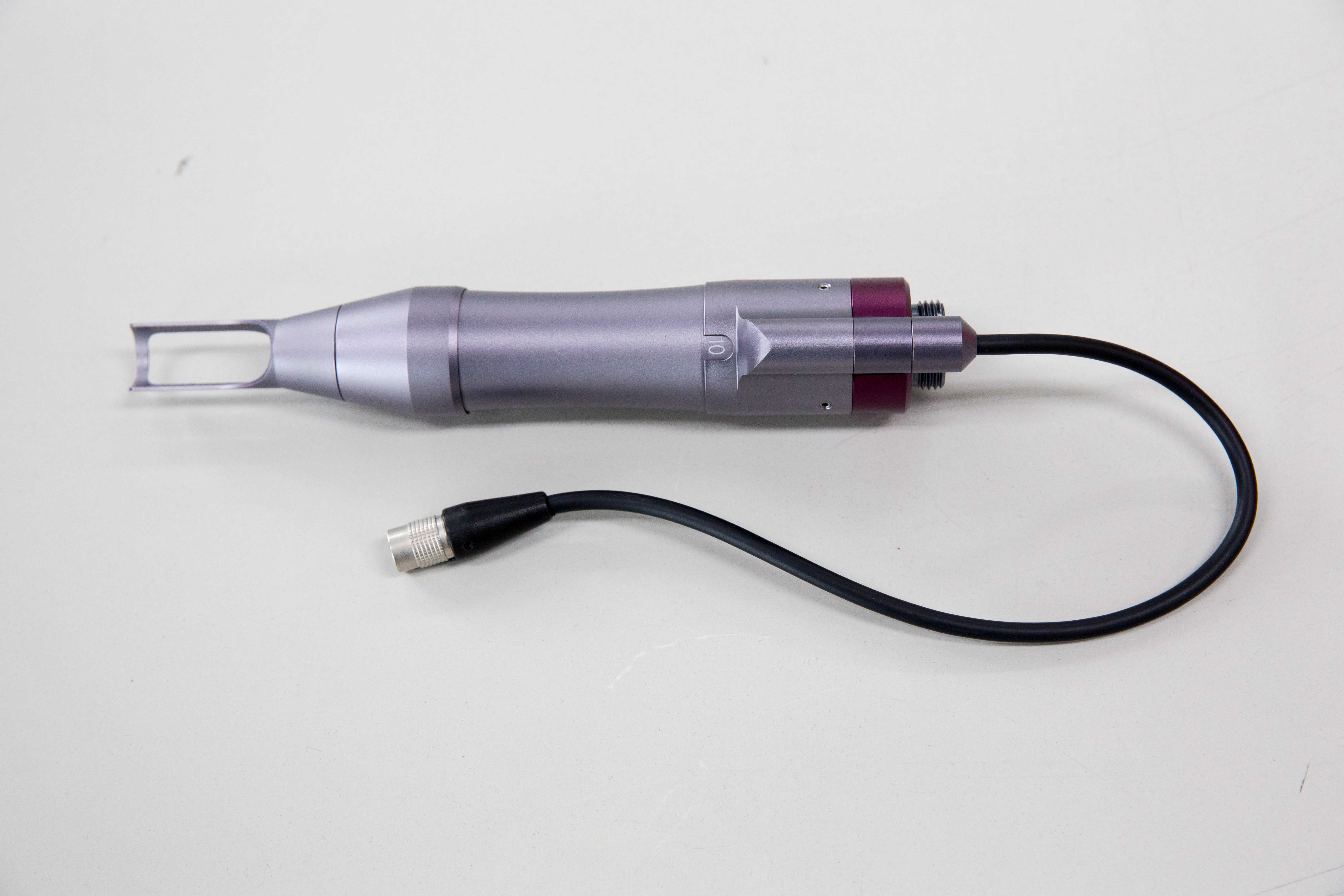

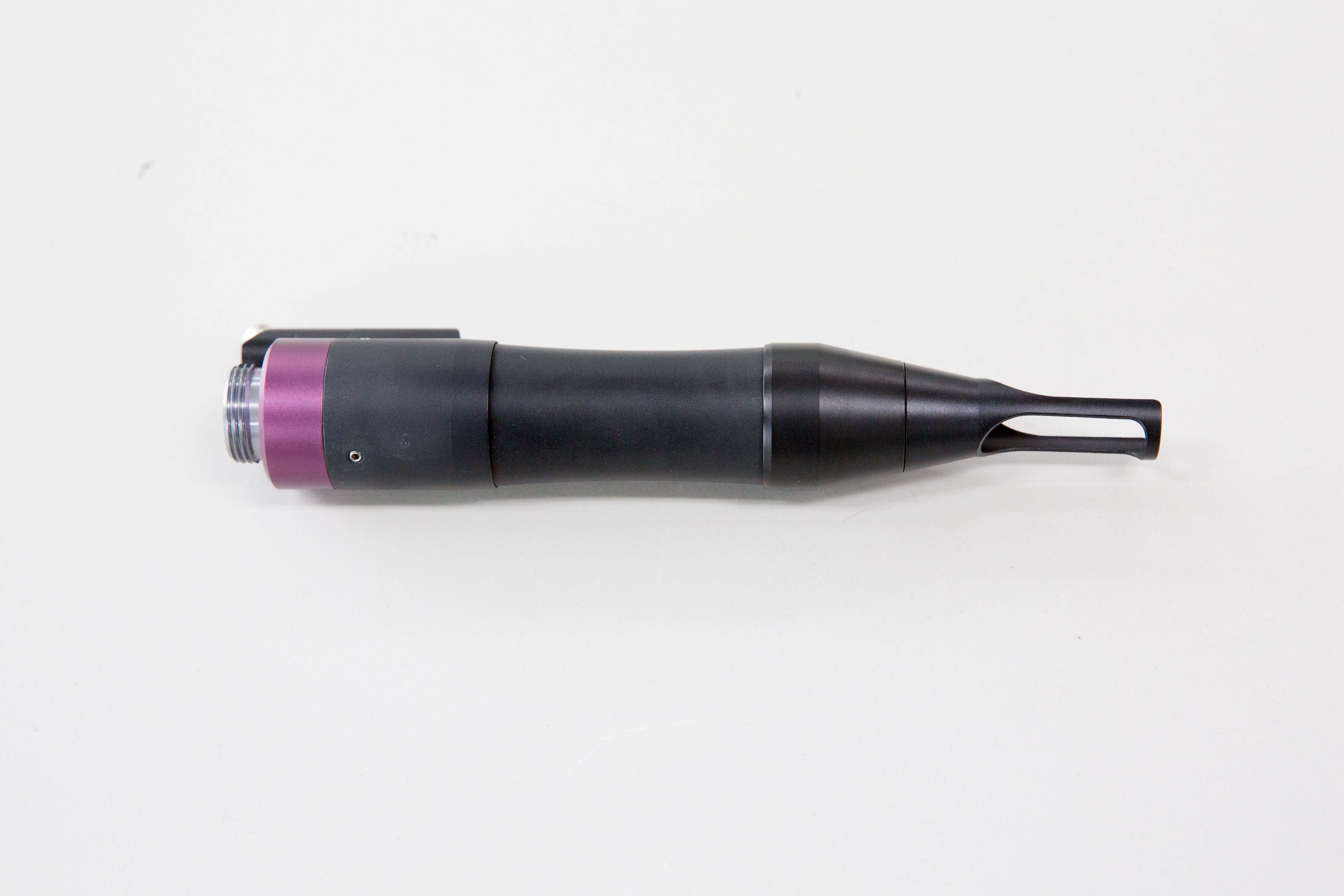

Zoom Hand Piece: | 1064nm(2,3,4,5,6,7,8,9,10)nm 532nm(2,3,4,5,6,7,8,9,10)nm |
*1064nm Fractional Hand Piece: | 9x9mm² / 9x9 dots |
*1064nm Fractional Hand Piece: | 9x9mm² / 7x7 dots |
